EMPTY CONTAINER HANDLING REACH STACKERS
TECHNICAL SPECIFICATIONS
| EMPTY CONTAINER HANDLING REACH STACKERS | ||
|---|---|---|
| Model | RS-EC | |
| Attachment type | 20’/40′ Top Pick Spreader | |
| Load capacity on tires at 1st/2nd/3rd row | kg | 12.000 | 10.000 | 6.000 |
| Load centre distance at 1st/2nd/3rd row | mm | 1.780 | 3.850 | 6.400 |
| Load centre to front face of the truck | mm | 700 |
| Lifting height under twist-lock (hook) | mm | 15.875 |
| Stacking Ability – containers | 1 over 5 = 6 x 8’6” | |
| Wheelbase | mm | 5.100 |
| Service weight – unladen | kg | 45.000 |
| EU Stage IIIA Engine make&model (Rated Power) | (kW) | CUMMINS QSB6.7 (164) |
| EU Stage IV Engine make&model (Rated Power) | (kW) | VOLVO TAD 871 VE (185) |
| Transmission make&model | DANA TE17 | |
| Service Brakes | Wet Disk on front wheels | |
| Tires size | 14.00-24 | |
| Overall width – excluding Spreader | mm | 4.143 |
| Overall length – including spreader | mm | 10.820 |
| Overall height | mm | 4.275 |
| Seat height | mm | 2.400 |
| Spreader rotation – clockwise/anticlockwise | deg | -105 / +195 |
| Spreader side-shift – left / right | mm | +800 / -800 |
| Boom Angle (min / max) | deg | 0 /65 |
∗ optional

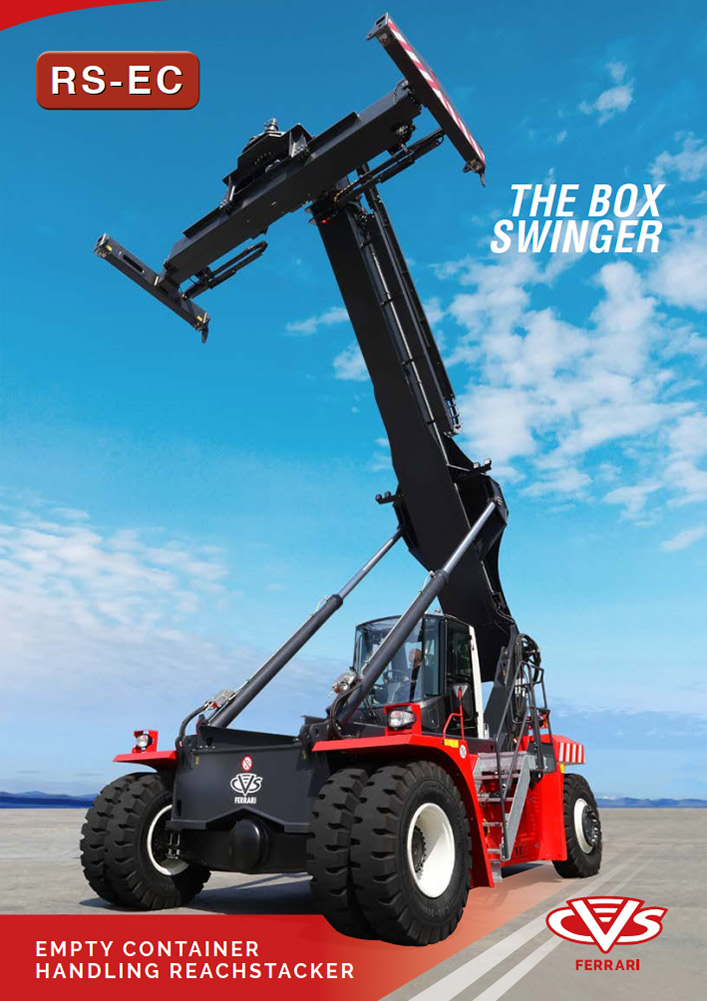

DOWNLOAD CATALOGUE
